Order no.: 111007

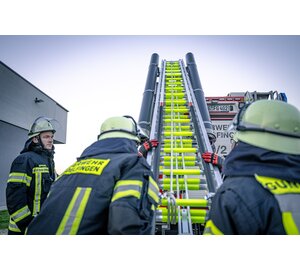

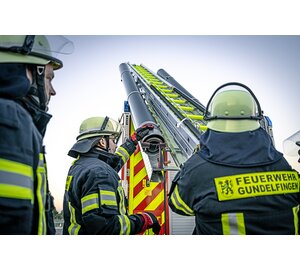

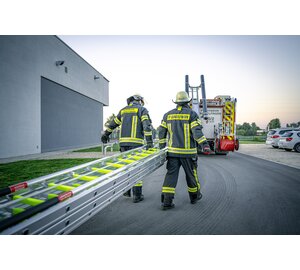

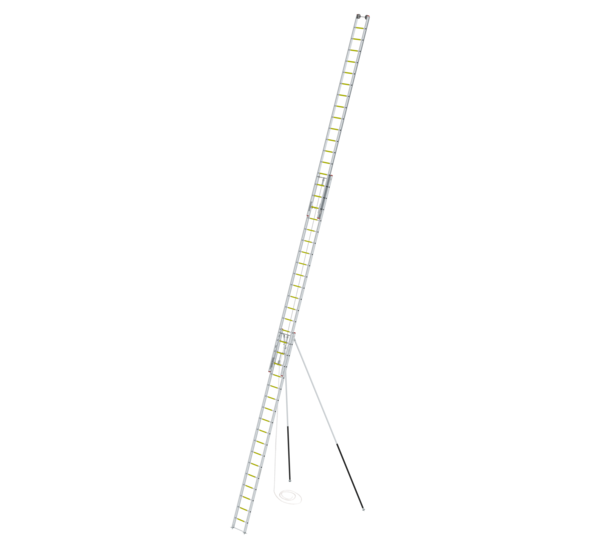

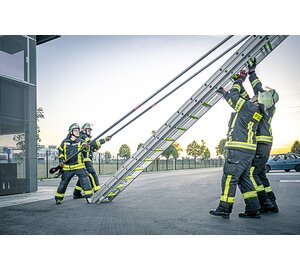

3-section rope ladder with supports DIN EN 1147 photoluminescent
Price on demand
Specifications
Rescue height
12.2 m
Intended use
Rescue
Ladder length retracted
5.6 m
Ladder length extended
14 m
Setting angle
70 °
Clear width between rungs
270 mm
Clear width, upper ladder
350 mm
Clear width, central ladder
420 mm
Clear width, lower ladder
420 mm
Outer width
500 mm
Ladder feet
Steel point
Depth of side-rails
74
Step/Rung height
28 mm
Step depth
29 mm
Number of steps/rungs
3x
17 rungs
Max. load capacity
324 kg
Persons max.
3
Material
Aluminium
Rung covering
Glow (yellow luminescent)
Transport dimensions (plus packaging)
6155 x 580 x 245 mm, 85 kg
Business division
MUNK Rettungstechnik
Order no.
111007
Information
- 3-section rope-extension ladder made of aluminium
- Rescue ladder compliant with DIN EN 1147
- With rope pulley, locking hook and rope brake
- Yellow luminescent, heat-insulating and non-slip plastic covering
- Supports made of aluminium tube with steel spikes and rubber jacketing
- 4-fold edged rung-to-side-rail connection
- Corrosion-resistant fixtures made of galvanised steel
- Lower ladder with steel spikes at the base
- Upper ladder with wall wheels
- Permissible load: 324 kg / 3 people
- 3-section rope-extension ladder made of aluminium
- Rescue ladder compliant with DIN EN 1147
- With rope pulley, locking hook and rope brake
- Yellow luminescent, heat-insulating and non-slip plastic covering
- Supports made of aluminium tube with steel spikes and rubber jacketing
- 4-fold edged rung-to-side-rail connection
- Corrosion-resistant fixtures made of galvanised steel
- Lower ladder with steel spikes at the base
- Upper ladder with wall wheels
- Permissible load: 324 kg / 3 people
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
