Order no.
: 062277

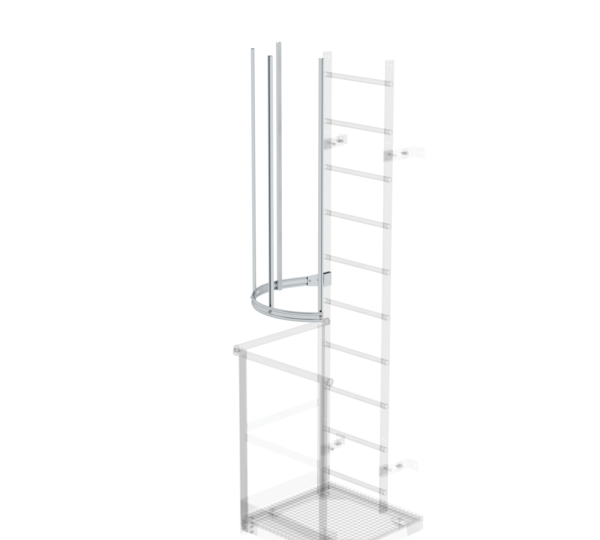

Back protection extension
€ 201.00
RRP without VAT
Specifications
Material
Aluminium
Weight
3.14 kg
Transport dimensions
3000 x 415 x 80 mm, 3.14 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
062277
Price
€ 201.00
Information
- Set consisting of 1x back protection hoop lateral exit, 2x back protection hoop strut
- Mounting set included
- Struts 3,000 mm long
- To reduce the distance between the railing and the back protection. If the horizontal distance from a vertical ladder with back protection to the railing is less than 1,500 mm, additional safety railings are required in accordance with DIN EN ISO 14122-4 and DIN 18799-3
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Protection hoop : 1 x
- Brace: 1 x
- Installation material: 1 x
- Assembly instructions: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Back protection extension Bright aluminium | Back protection extension Anodised aluminium | Back protection extension Galvanised steel | Back protection extension V2A stainless steel |
|---|---|---|---|---|
| Material | Aluminium | Anodised aluminium | Galvanised steel | Stainless steel |
| Weight | 3.14 kg | 3.28 kg | 7.38 kg | 7.34 kg |
| Transport dimensions | 3000 x 415 x 80 mm, 3.14 kg | 790 x 415 x 70 mm, 1.12 kg | 820 x 400 x 62 mm, 2.38 kg | 745 x 425 x 60 mm, 2.34 kg |
| Transport dimensions 2 | 3000 x 30 x 40 mm, 2.16 kg | 3000 x 30 x 38 mm, 5 kg | 3000 x 30 x 38 mm, 5 kg | - |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 062277 | 061277 | 063277 | 068277 |
| Price | € 201.00 | € 263.00 | € 158.00 | € 712.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
