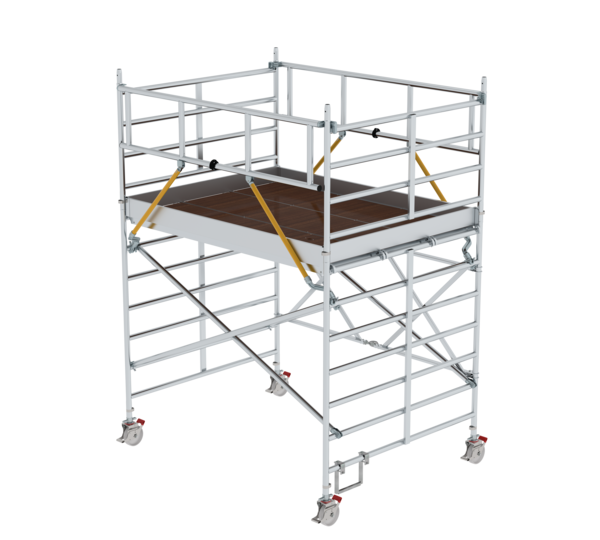

Folding scaffolding SG with triple platform
Specifications
Information
- Mobile scaffolding made of sturdy round aluminium tubing with welded frame parts
- Secured all around thanks to leading railing, can be assembled and dismantled from level to level
- Double folding frame made of rectangular tube side-rails with self-locking hinges
- Large work area of 4.5 m²
- Space-saving transport and storage
- Four Ø 200 mm swivel castors with centric load application, locking mechanisms and spindles
- Aluminium toe boards and railing frames with integrated knee board as safety railing
- Simple setup and removal without tools
- Working heights up to 10.39 m
- GS-tested as per DIN EN 1004
- Load class/scaffolding group 2: 1.5 kN/m²
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Safety. Made in Germany.
Comparison table
| Product name | Folding scaffolding SG with triple platform Platform height 2.51 m | Folding scaffolding SG with triple platform Platform height 4.47 m | Folding scaffolding SG with triple platform Platform height 6.43 m | Folding scaffolding SG with triple platform Platform height 8.39 m |
|---|---|---|---|---|
| Working height | 4.51 m | 6.47 m | 8.43 m | 10.39 m |
| Scaffolding height | 3.78 m | 5.74 m | 7.7 m | 9.66 m |
| Platform height | 2.51 m | 4.47 m | 6.43 m | 8.39 m |
| Platform width | 1.9 m | 1.9 m | 1.9 m | 1.9 m |
| Platform length | 2.45 m | 2.45 m | 2.45 m | 2.45 m |
| Load capacity | 1.5 kN/m2 | 1.5 kN/m2 | 1.5 kN/m2 | 1.5 kN/m2 |
| Weight | 192 kg | 302 kg | 412 kg | 523 kg |
| Transport dimensions | 3000 x 2000 x 900 mm, 183 kg | 3000 x 2000 x 1100 mm, 304 kg | 3000 x 2000 x 1600 mm, 403 kg | 3000 x 2000 x 1500 mm, 513 kg |
| Indoor use, central installation | possible & allowed | possible & allowed | possible & allowed | possible & allowed |
| Outdoor use, central installation | possible & allowed | possible & allowed | possible & allowed | not allowed |
| Ballasting of scaffolding, indoor, central installation | 0 kg | 0 kg | 0 kg | 0 kg |
| Ballasting of scaffolding, outdoor, central installation | 0 kg | 130 kg | 310 kg | - |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 115510 | 115545 | 115565 | 115585 |
| Price | € 5,336.00 | € 8,369.00 | € 11,402.00 | € 14,435.00 |
| Buy online |
Note on the BG BAU work safety subsidy
This product can be funded as part of the BG BAU work safety subsidies! Subsidy subject to conditions; for the latest information, please visit the homepage of BG BAU.
Our safety railing (SG) is a system-integrated side protection that minimises the risk of falling during assembly, conversion and dismantling, as well as when using working and protective scaffolding. With this technical protection you meet the highest safety standards and at the same time benefit from an attractive subsidy of up to 50% of the purchase costs (max. 100 euro per measure).
✔ For new mobile scaffolding: The safety railings are eligible as part of a complete working platform (including safety railings and frame parts).
✔ For existing scaffolding: Retrofits with compatible safety railings are possible.
All members of the BG BAU profit from this subsidy. This is intended to prevent accidents at work and improve ergonomics, especially on construction sites. All information from BG BAU can be found at: www.bgbau.de/service/angebote/arbeitsschutzpraemien
A brief overview of the subsidy and an overview of our eligible products can be found on our website at Knowledge.
