Order no.
: 115601

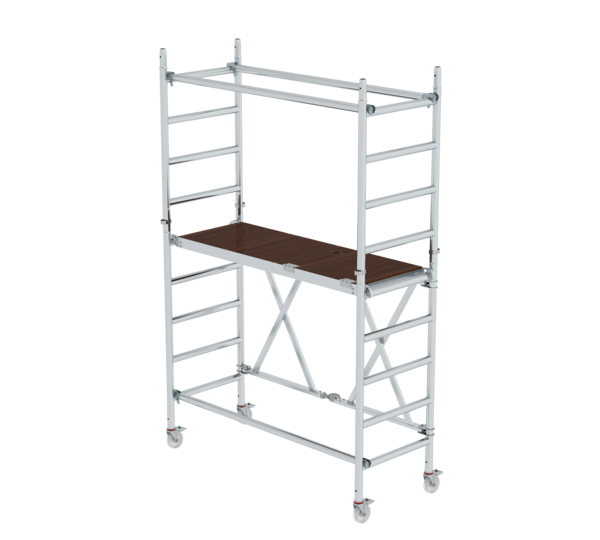

Folding scaffold 0.75x1.80m with extension unit
€ 1,735.00
RRP without VAT
Specifications
Working height
3.48 m
Scaffolding height
2.83 m
Platform height
1.48 m
Platform width
750 mm
Platform length
1.8 m
Load capacity
1.5 kN/m2
Weight
48 kg
Indoor use, central installation
possible & allowed
Outdoor use, central installation
possible & allowed
Ballasting of scaffolding, indoor, central installation
60 kg
Ballasting of scaffolding, outdoor, central installation
190 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
115601
Price
€ 1,735.00
Information
- Mobile scaffolding made of sturdy round aluminium tubing with welded frame parts
- Folding frame made of rectangular tube side-rails with self-locking hinges
- Space-saving transport and storage
- Sturdy railing for safety railing
- Slip-resistant platform with large trapdoor for secure standing
- Four Ø 125 mm swivel castors with locking mechanisms
- Railing frame with horizontal struts for safety railing
- Delivered in assemblies. Once assembled, the scaffolding can be quickly set up and dismantled without tools
- Different platform widths available (0.75 / 1.35 m)
- Working heights up to 3.48 m
- Type-tested
- Load class/scaffolding group 2: 1.5 kN/m²
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- 027945 - Folding frame unit with swivel castors: 1 x
- 027931 - Platform with trapdoor: 1 x
- 027935 - Horizontal strut: 3 x
Safety. Made in Germany.
Comparison table
| Product name | Folding scaffold 0.75x1.80m with extension unit Platform height 1.55 m | Folding scaffold 1.35x1.80m with extension unit Platform height 1.55 m |
|---|---|---|
| Working height | 3.48 m | 3.48 m |
| Scaffolding height | 2.83 m | 2.66 m |
| Platform height | 1.48 m | 1.48 m |
| Platform width | 750 mm | 1.35 m |
| Platform length | 1.8 m | 1.8 m |
| Load capacity | 1.5 kN/m2 | 1.5 kN/m2 |
| Weight | 48 kg | 69 kg |
| Indoor use, central installation | possible & allowed | possible & allowed |
| Outdoor use, central installation | possible & allowed | possible & allowed |
| Ballasting of scaffolding, indoor, central installation | 60 kg | - |
| Ballasting of scaffolding, outdoor, central installation | 190 kg | 40 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 115601 | 115701 |
| Price | € 1,735.00 | € 2,363.00 |
| Buy online |
Note on the BG BAU work safety subsidy
Expand your scaffolding with a safety railing (SG) and ensure reliable protection at work thanks to the system-integrated side protection! The retrofit reduces the risk of falling and enables the BG BAU work safety subsidy to be paid for up to 50% of the purchase costs (max. 100 euro per measure).
✔ Suitable for this product: Compatible SG safety railings offer effective side protection and are easy to retrofit.
All members of the BG BAU profit from this subsidy. This is intended to prevent accidents at work and improve ergonomics, especially on construction sites. All information from BG BAU can be found at: www.bgbau.de/service/angebote/arbeitsschutzpraemien
A brief overview of the subsidy and an overview of our eligible products can be found on our website at Knowledge.
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
