Specifications
Product type

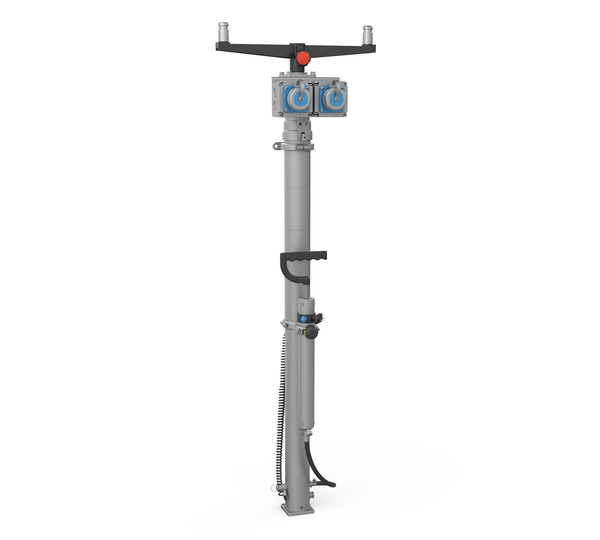

Lighting mast 3.5 m
Max. load capacity
20 kg
Height of lamp pole (tripod retracted)
1.45 m
Height of lamp pole (tripod extended)
3.5 m
Height of lamp pole (tripod mounted)
1.75 m
Transport dimensions (plus packaging)
1495 x 330 x 370 mm, 20 kg
Business division
MUNK Rettungstechnik
Order no.
120205
Information

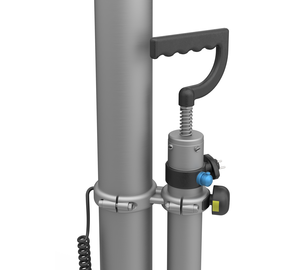

- Pneumatically extendable via hand pump (up to 3.0 / 3.5 / 4.0 m)
- Spiral cable with 230 V plug (IP68) / 2x 230 V sockets (IP68) mounted on the pole
- Including bridge bracket for two spotlights
- Delivered ready for use including mounting material for self-assembly
- Only suitable for mounting on mobile containers (no mast extension warning switch mounted)
- Height dimensions without connection bridge
- Pneumatically extendable via hand pump (up to 3.0 / 3.5 / 4.0 m)
- Spiral cable with 230 V plug (IP68) / 2x 230 V sockets (IP68) mounted on the pole
- Including bridge bracket for two spotlights
- Delivered ready for use including mounting material for self-assembly
- Only suitable for mounting on mobile containers (no mast extension warning switch mounted)
- Height dimensions without connection bridge
Comparison table
| Product name | Lamp pole 3.5 m For mobile container power-light | Lamp pole 4 m For mobile container power-light | Lamp pole 3 m For mobile container power-light |
|---|---|---|---|
| Product type | Lighting mast 3.5 m | Lighting mast 4 m | - |
| Max. load capacity | 20 kg | 20 kg | 20 kg |
| Height of lamp pole (tripod retracted) | 1.45 m | 1.57 m | 1.3 m |
| Height of lamp pole (tripod extended) | 3.5 m | 4 m | 2.7 m |
| Height of lamp pole (tripod mounted) | 1.75 m | 1.87 m | 1.6 m |
| Transport dimensions (plus packaging) | 1495 x 330 x 370 mm, 20 kg | 1615 x 360 x 295 mm, 20 kg | 1370 x 345 x 290 mm, 17.82 kg |
| Business division | MUNK Rettungstechnik | MUNK Rettungstechnik | MUNK Rettungstechnik |
| Order no. | 120205 | 120305 | 120105 |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
