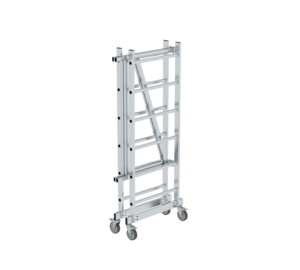

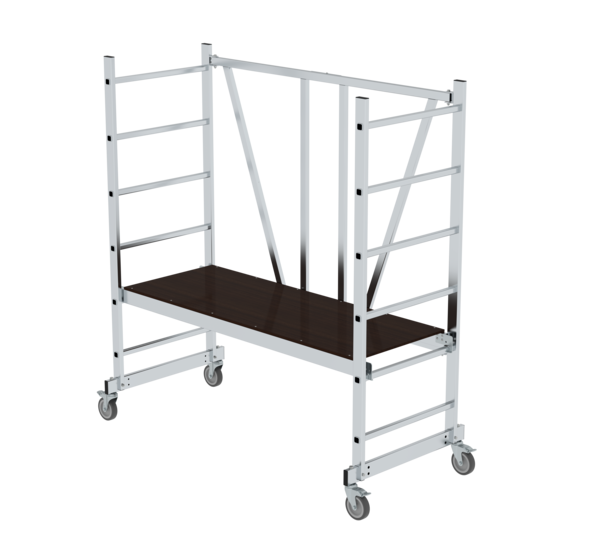

ML folding scaffolding
Specifications
Information
- Folding ladder scaffolding made of stable rectangular tube side-rails
- Folding frame with self-locking hinges
- Rectangular rungs grooved on both sides, 30 x 30 mm
- 4-fold edged rung-to-side-rail connection
- Space-saving transport and storage
- For narrow passages in assembled condition thanks to a chassis bar width of 800 mm
- Four Ø 125 mm swivel castors with locking mechanisms
- Slip-resistant platform for secure standing
- Delivered in assemblies. Once assembled, the scaffolding can be quickly set up and dismantled without tools
- Optional telescopic outriggers for even greater stability
- Working heights up to 3.0 m
- Maximum load: 150 kg
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Safety. Made in Germany.
Comparison table
| Product name | ML folding scaffolding for narrow passages without telescopic outrigger | ML folding scaffolding door-accessible |
|---|---|---|
| Working height | 3 m | 3 m |
| Scaffolding height | 1.88 m | 1.88 m |
| Platform height | 1 m | 1 m |
| Platform width | 600 mm | 600 mm |
| Platform length | 1.6 m | 1.6 m |
| Load capacity | 1.5 kN/m2 | 1.5 kN/m2 |
| Max. load capacity | 150 kg | 150 kg |
| Weight | 28.6 kg | 33.2 kg |
| Transport dimensions | 1710 x 805 x 238 mm, 18 kg | 1710 x 805 x 238 mm, 18 kg |
| Transport dimensions 2 | 350 x 305 x 260 mm, 4.56 kg | - |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 011300 | 011301 |
| Price | € 748.00 | € 953.00 |
| Buy online |
Product video
Note on the BG BAU work safety subsidy
Expand your scaffolding with a safety railing (SG) and ensure reliable protection at work thanks to the system-integrated side protection! The retrofit reduces the risk of falling and enables the BG BAU work safety subsidy to be paid for up to 50% of the purchase costs (max. 100 euro per measure).
✔ Suitable for this product: Compatible SG safety railings offer effective side protection and are easy to retrofit.
All members of the BG BAU profit from this subsidy. This is intended to prevent accidents at work and improve ergonomics, especially on construction sites. All information from BG BAU can be found at: www.bgbau.de/service/angebote/arbeitsschutzpraemien
A brief overview of the subsidy and an overview of our eligible products can be found on our website at Knowledge.
