Order no.: 170235

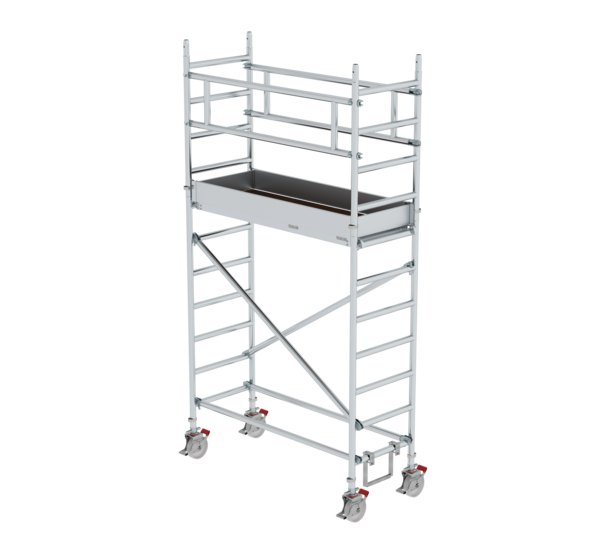

Mobile scaffolding, 0.75 × 1.80 m
€ 2,701.00
RRP without VAT
Specifications
Working height
4.51 m
Scaffolding length
1.91 m
Scaffolding width
957 mm
Scaffolding height
3.78 m
Platform width
750 mm
Platform length
1.8 m
Load capacity
2 kN/m2
Transport dimensions (plus packaging)
2250 x 800 x 550 mm, 88 kg
Indoor use, central installation
possible & allowed
Indoor use, lateral installation
not possible
Outdoor use, central installation
possible & allowed
Outdoor use, lateral installation
not possible
Ballasting of scaffolding, indoor, central installation
90 kg
Ballasting of scaffolding, outdoor, central installation
350 kg
Business division
MUNK Günzburger Steigtechnik
Notice
Accessories necessary to fulfil DIN EN 1004-1:2021
Platform height
2.51 m
Information
- Mobile scaffolding made of sturdy round aluminium tubing with welded frame parts
- All scaffolding parts are also available individually as spare or extension parts
- Four swivel castors, Ø 200 mm, with central load distribution, brakes and spindles for height adjustment
- Aluminium toe boards and railing frames with integrated knee board as safety railing
- Can be set up and dismantled without tools thanks to push-fit connections and quick-release fasteners
- Easy to handle thanks to individual lightweight parts
- Different platform lengths available (1.80 / 2.45 / 3.0 m)
- Load class/scaffolding group 3: 2.0 kN/m²
- In order to meet the requirements of DIN EN 1004-1:2021, this scaffold must be retrofitted
- Option 1 - Conversion to MSG: 2 protective assembly railings telescopic (027991) are required for safe assembly, dismantling and conversion
- Option 2 - Conversion to SG: Replace the railings lengthwise with safety railings for mobile scaffoldings in the appropriate scaffold length (2 pieces per platform level). Replace the guardrail frame at the front (top platform level) with railing frame SG at the front in the appropriate width. Omit the diagonal braces above the first platform
- Additional side boards for intermediate platforms are available as an option for country-specific requirements (e.g. Austria and France)
- Mobile scaffolding made of sturdy round aluminium tubing with welded frame parts
- All scaffolding parts are also available individually as spare or extension parts
- Four swivel castors, Ø 200 mm, with central load distribution, brakes and spindles for height adjustment
- Aluminium toe boards and railing frames with integrated knee board as safety railing
- Can be set up and dismantled without tools thanks to push-fit connections and quick-release fasteners
- Easy to handle thanks to individual lightweight parts
- Different platform lengths available (1.80 / 2.45 / 3.0 m)
- Load class/scaffolding group 3: 2.0 kN/m²
- In order to meet the requirements of DIN EN 1004-1:2021, this scaffold must be retrofitted
- Option 1 - Conversion to MSG: 2 protective assembly railings telescopic (027991) are required for safe assembly, dismantling and conversion
- Option 2 - Conversion to SG: Replace the railings lengthwise with safety railings for mobile scaffoldings in the appropriate scaffold length (2 pieces per platform level). Replace the guardrail frame at the front (top platform level) with railing frame SG at the front in the appropriate width. Omit the diagonal braces above the first platform
- Additional side boards for intermediate platforms are available as an option for country-specific requirements (e.g. Austria and France)
Scope of supply
- 027904 - Push-fit frame 75/196: 2 x
- 027955 - Railing lengthwise: 2 x
- 027931 - Platform with trapdoor: 1 x
- 027913 - Toe board front side: 2 x
- 027943 - Toe board long side: 2 x
- 027937 - Diagonal brace: 2 x
- 027935 - Horizontal strut: 2 x
- 027917 - Swivel castor with spindle: 4 x
- 027940 - Step-on bracket: 1 x
- Instructions for assembly and use EN 1004-2 - de: 1 x
- 027905 - Push-fit frame 75/112: 2 x
