Order no.
: 062183

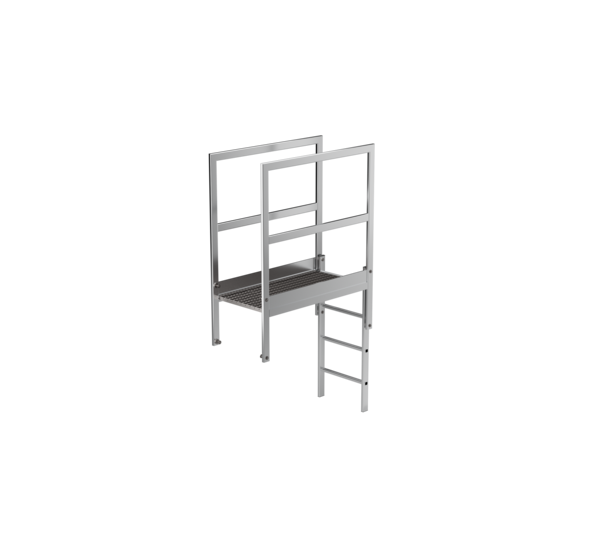

Roof parapet bridge bright aluminium special length
€ 1,858.00
RRP without VAT
Specifications
Length
1.2 m
Ladder length
1.22 m
Ladder length incl. exit side-rail
2.21 m
Entry/Exit
Roof parapet bridge
Material
Aluminium
Passage width
536 mm
Clear length
1.08 m
Weight
26 kg
Transport dimensions
2220 x 1200 x 590 mm, 26.6 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
062183
Price
€ 1,858.00
Information
- With grating
- Passage width 536 mm, special widths on request
- Recommendation for the bottom end at the exit point: Adjustable wall anchors or foot plates
- Descent ladder: Length 1,220 mm, Length to be cut to size by client
- Longer delivery times thanks to order-related production
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Grating: 1 x
- Garde-corps: 2 x
- Descent ladder: 1 x
- Assembly kit: 1 x
- Assembly instructions: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Roof parapet bridge bright aluminium special length 1200mm | Roof parapet bridge bright aluminium special length 1400mm | Roof parapet bridge bright aluminium special length 1600mm |
|---|---|---|---|
| Length | 1.2 m | 1.4 m | 1.6 m |
| Ladder length | 1.22 m | 1.22 m | 1.22 m |
| Ladder length incl. exit side-rail | 2.21 m | 2.21 m | 2.21 m |
| Entry/Exit | Roof parapet bridge | Roof parapet bridge | Roof parapet bridge |
| Material | Aluminium | Aluminium | Aluminium |
| Passage width | 536 mm | 536 mm | 536 mm |
| Clear length | 1.08 m | 1.28 m | 1.48 m |
| Weight | 26 kg | 27 kg | 28 kg |
| Transport dimensions | 2220 x 1200 x 590 mm, 26.6 kg | 2220 x 1400 x 590 mm, 28.4 kg | 2220 x 1600 x 590 mm, 30.3 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 062183 | 062184 | 062185 |
| Price | € 1,858.00 | € 1,897.00 | € 1,922.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
