Order no.: 116103

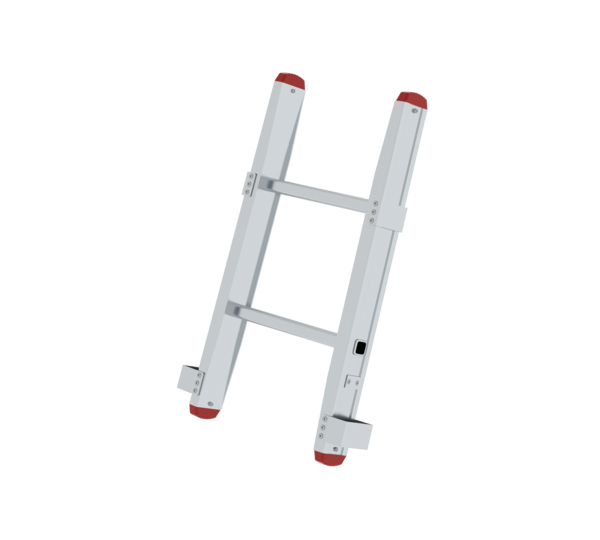

Scaling ladder push-fit section ÖNORM F 4047
Price on demand
Specifications
Ladder length
750 mm
Outer width
485 mm
Ladder feet
Ladder shoe
Depth of side-rails
74 mm
Width of side-rails
35 mm
Step/Rung height
28 mm
Step depth
29 mm
Number of steps/rungs
2 rungs
Step/Rung distance
273 mm
Max. load capacity
216 kg
Persons max.
2
Material
Aluminium
Transport dimensions (plus packaging)
750 x 488 x 85 mm, 2.5 kg
Business division
MUNK Rettungstechnik
Order no.
116103
Information
- Rescue ladder, made of aluminium, compliant with ÖNORM F4047
- Secure push-fit connections with spring-loaded locking pin
- 4-fold edged rung-to-side-rail connection
- Conical side-rail guide for safe stance
- Corrosion-resistant fixtures made of galvanised steel
- Non-slip and replaceable ladder shoes
- Upper ladder with box profile rung made of aluminium chequered plate
- Permissible load: 2 persons
- Rescue ladder, made of aluminium, compliant with ÖNORM F4047
- Secure push-fit connections with spring-loaded locking pin
- 4-fold edged rung-to-side-rail connection
- Conical side-rail guide for safe stance
- Corrosion-resistant fixtures made of galvanised steel
- Non-slip and replaceable ladder shoes
- Upper ladder with box profile rung made of aluminium chequered plate
- Permissible load: 2 persons
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
