Transport and assembly platform "Roller shutter panels"
Specifications
Information
- Platform length (PFL): 2,060 mm
- Platform width (PFB): 1,200 mm
- Platform height (PFH): 700 mm
- Overall length (L): approx. 2,275 mm
- Overall width (B): approx. 1,731 mm
- Overall height (H): approx. 2,500 mm
- Support width (AB): 700 mm
- Swivel castors: 4 pieces, Ø 160 mm
- Surface: Aluminium ribbed (R9)
- Railing: 1 x rigid long side, 2 x rigid short side
- Safety door: spring-loaded at the front
- Surface load: 1.5 kN/m²
- Total load: 300 kg
Client's Request and Task
A leading vehicle manufacturer faced the challenge of developing a special assembly platform for mounting rolling door panels on truck bodies. In the dynamic and demanding environment of vehicle assembly, it was crucial to design a platform that not only increases the efficiency of the assembly process but also meets the highest standards in terms of ergonomics and occupational safety. Moreover, it was of great importance that the construction of the platform was stable, reliable, and in compliance with all applicable industry standards and regulations to ensure seamless integration into existing workflows.
- Assembly platform for rolling door panels on truck bodies
- Ergonomic and safe working
- Stable, reliable, and standard-compliant execution
Our Solution
Transport and Assembly Platform Concept

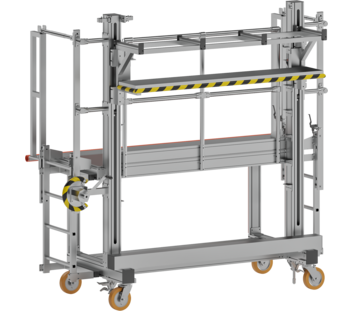

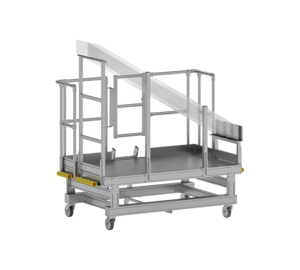

The "Rolling Door Panels" transport and assembly platform was developed to mount rolling door panels safely and efficiently. The panels are temporarily stored on an inclined support of the platform and transported to the next step of the process, enabling efficient assembly.
Technical Execution and Functionality

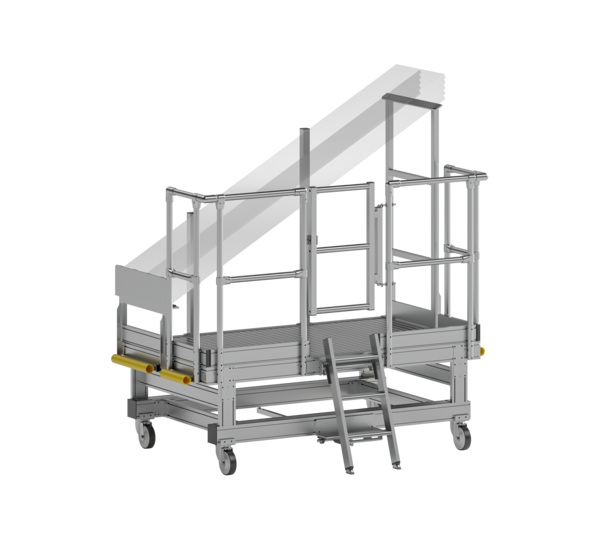

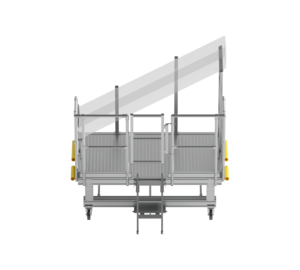

The platform consists of two side frames, a platform, a railing, and a chassis with central locking. A removable step ladder on the longitudinal side ensures safe access, and an inclined support for the rolling door panels on the opposite side allows for practical and ergonomic handling of the panels. Impact protection on both ends provides additional safety. The platform measures 2000 mm in length, 1200 mm in width, and 700 mm in height.
Chassis and Safety Features
The chassis consists of four swivel casters with a diameter of 160 mm. The operation of the brake is from the longitudinal side.
Decking and Railing
The platform features a grooved aluminum decking (R9). The railing is fixed on one longitudinal side and both ends. A spring-loaded safety door at the end and another safety door on the left side increase safety during work.
Load Capacities
The surface load of the platform is 1.5 kN/m² and the total load capacity is 300 kg.
Conclusion
The "Rolling Door Panels" transport and assembly platform offers an optimal solution for the assembly of rolling door panels. With its ergonomic and safe design, combined with practical functionalities, it enables efficient and comfortable working while meeting the highest safety standards.
