Order no.
: 068264

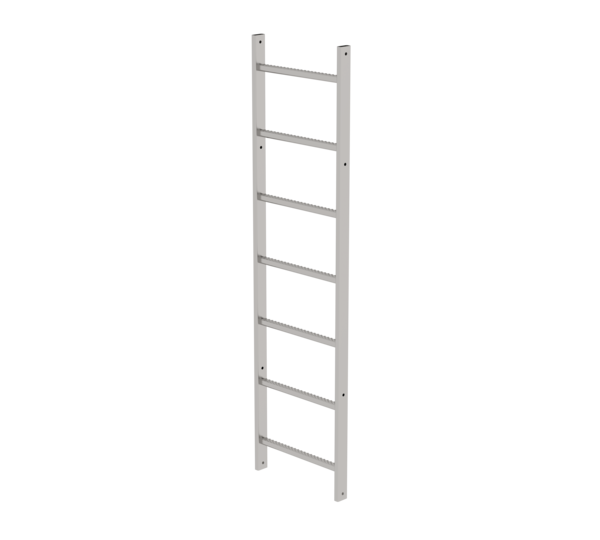

Ladder section stainless steel
€ 553.00
RRP without VAT
Specifications
Length
1.96 m
Outer width
520 mm
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Number of steps/rungs
7 rungs
Max. load capacity
150 kg
Material
Stainless steel
Weight
10.5 kg
Transport dimensions
1959 x 518 x 60 mm, 10.5 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
068264
Price
€ 553.00
Spare part for article no.
530100
Spare part for article no.
530125
Information
- Ladder width 520 mm
- Rung distance: 280 mm
- Side-rail dimensions: 60 x 25 mm
- Dimension of rungs: 30 x 30 mm
- Rung design: with anodised aluminium and bright aluminium grooved rungs, with galvanised steel and stainless steel perforated rungs
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder section: 1 x
- Assembly instructions: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Ladder section stainless steel 7 rungs Stainless steel | Ladder section stainless steel 10 rungs Stainless steel | Ladder section stainless steel 13 rungs V2A stainless steel |
|---|---|---|---|
| Length | 1.96 m | 2.8 m | 3.64 m |
| Outer width | 520 mm | 520 mm | 520 mm |
| Step/Rung height | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm |
| Number of steps/rungs | 7 rungs | 10 rungs | 13 rungs |
| Max. load capacity | 150 kg | 150 kg | 150 kg |
| Material | Stainless steel | Stainless steel | Stainless steel |
| Weight | 10.5 kg | 15 kg | 20 kg |
| Transport dimensions | 1959 x 518 x 60 mm, 10.5 kg | 2749 x 518 x 60 mm, 15 kg | 3634 x 518 x 60 mm, 20 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 068264 | 068265 | 068266 |
| Price | € 553.00 | € 767.00 | € 994.00 |
| Buy online |
Fixed ladders overview
All fixed ladders / vertical ladders at a glance:
- Single-flight vertical ladders in accordance with DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4 (depending on the choice of standard and the situation on site at the exit, additional components such as exit steps, railings and safety doors may be required)
- DIN 18799-1: Stationary multiple-flight vertical ladders on buildings
- DIN 14094-1: Multiple-flight emergency ladder systems (emergency ladders)
- DIN EN ISO 14122-4: Stationary multiple-flight vertical ladders on machinery
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
