Specifications
Weight
218 kg
Business division
MUNK Rettungstechnik
Order no.
114020
Information
- For carrying out regularly, recurring load tests on portable fire service ladders in accordance with DIN EN 1147 or DGUV 305-002
- The following ladders can be tested:
- Scaling ladder with accessories
- Rope-extension ladder 2-section and 3-section
- Multi-function ladder with accessories
- Hook ladder

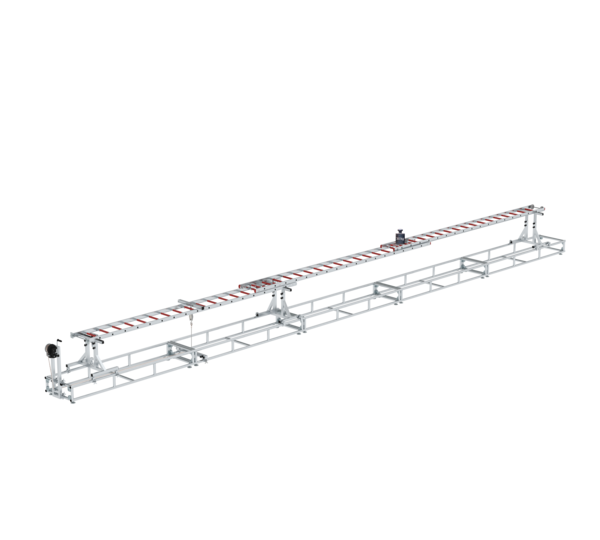

- Test stand consisting of:
- 5x aluminium stabiliser with height-adjustable spindles connectable by hook clamps
- 1x pulling device with winch, including 15 m cable
- 2x mobile support frame
- 1x fixed support frame
- 1x fixed support frame with pulley
- 1x clamping piece for rung ladders
- 1x cross profile with ring nut
- 1x digital hanging scale
- 2x steel cable (length 4 m and 0.4 m)
- 3x rope guide
- 2x tray for scaling ladder test
- For testing in accordance with DGUV 305-002, an optional 30 kg ballast weight is required
- For carrying out regularly, recurring load tests on portable fire service ladders in accordance with DIN EN 1147 or DGUV 305-002
- The following ladders can be tested:
- Scaling ladder with accessories
- Rope-extension ladder 2-section and 3-section
- Multi-function ladder with accessories
- Hook ladder
- Test stand consisting of:
- 5x aluminium stabiliser with height-adjustable spindles connectable by hook clamps
- 1x pulling device with winch, including 15 m cable
- 2x mobile support frame
- 1x fixed support frame
- 1x fixed support frame with pulley
- 1x clamping piece for rung ladders
- 1x cross profile with ring nut
- 1x digital hanging scale
- 2x steel cable (length 4 m and 0.4 m)
- 3x rope guide
- 2x tray for scaling ladder test
- For testing in accordance with DGUV 305-002, an optional 30 kg ballast weight is required
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
